Eco

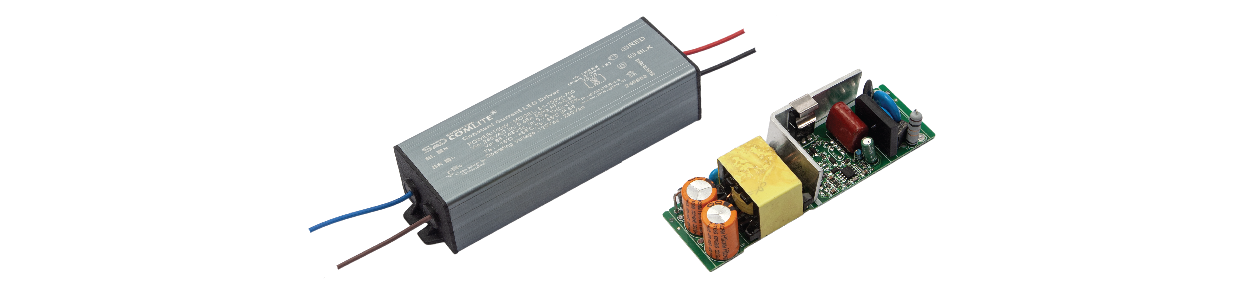

Constant Current Drivers - Eco

With 2 Year Warranty

Product Features

Input Voltage

240Vac

Input Operating Voltage

120Vac - 300Vac

SPD Compatibility

10KV

THD

< 10%

Input Power Factor

> 0.95

Efficiency

> 85%

Output Current Regulation

±5%

Operating Test Range

160V - 280V

Operating Temperature Range

-10*C to 70*C

Potted Driver

Yes

IP

66

Semi- Aluminium

Housing

Certification

CRS (IS 15885, PART 2/SEC 13): 2012

Protection

CLASS

1

440V Test

Single

Phase

4 Hrs

415V Test

Double

Phase

8 Hrs

Surge protection

6KV

Low Voltage Protection

Cut off < 110V | Restart > 115V

Over Voltage Protection

Cut off > 310Vac & Recovery < 290Vac

Protected

from Short Circuit and Open Circuit

Thermal Protection

Thermal fold back at Tc 85*C

Isolation (Input - Output)

1.75KV

DATA SHEET CONSTANT CURRENT
DRIVER		 PRODUCT CATEGORY: Eco
Warrenty: 2 Years from the Date of Invoice
Sr.No DRIVER WATTAGE 24W 36W 45W / 50W 45W / 50W 60W 70W / 72W / 75W 80W / 90W / 100W
01 OUTPUT VOLTAGE 21-30Vdc 31-45Vdc 48-66Vdc 26-36Vdc 70-80Vdc 80-110Vdc 110V-135Vdc
02 OUTPUT CURRENT 700mA 700mA 700mA 1400mA 700mA 700mA 700mA
