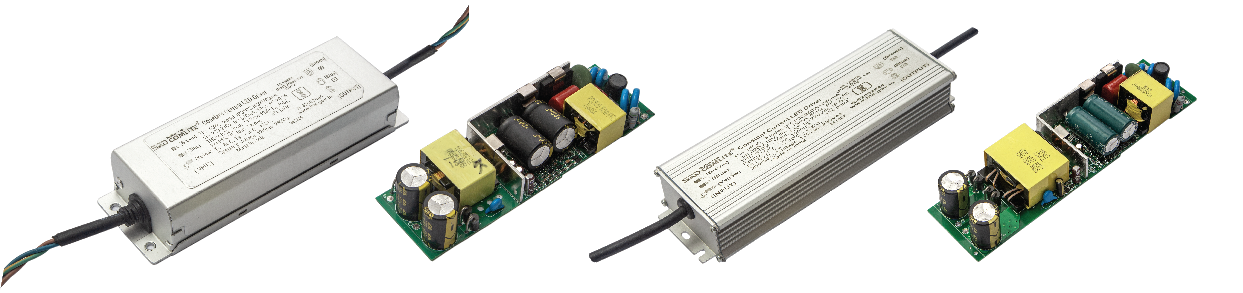

Available in 20 different options, ranging from 5W to 200W
With 5 Year Warranty
Input Voltage
240Vac
Output Current
700mA
SPD Compatibility
20KV
THD
< 10%
Input Power Factor
> 0.95
Output Current Regulation
±5%
Operating Test Range
140V - 280V
Operating Temperature Range
-10⁰C to 70⁰C.
Certification
CRS (IS 15885, PART 2/SEC 13): 2012
Potted Driver
Yes
IP
66 / 67
CLASS
1
440V Test: Single Phase
10 Hrs
415V Test: Double Phase
8 Hrs
Low Voltage Protection
Cut off < 90v | Restart > 100v
Over Voltage Protection
Cut off > 320Vac & Recovery < 300Vac
Thermal Protection
Thermal fold back at Tc 85*C
Isolation (Input - Output)
3.75KV
Isolation (Input - Earth)
1.5KV
Surge Protection
6KV

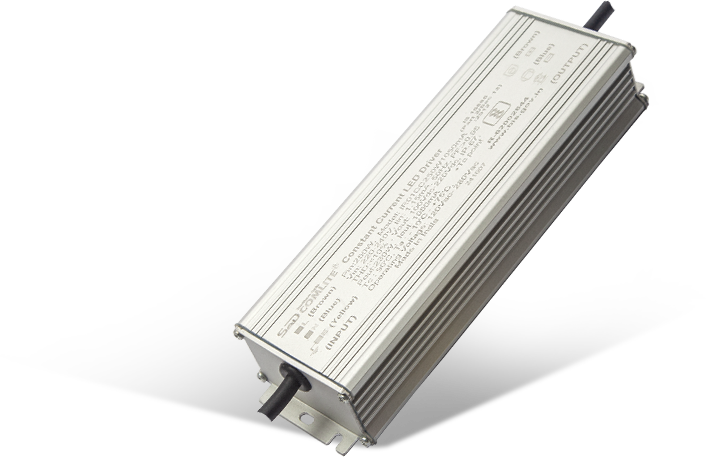

| DATA SHEET | CONSTANT CURRENT DRIVER |
PRODUCT CATEGORY: Premium Warrenty: 5 Years from the Date of Invoice |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Sr.No | DRIVER WATTAGE | 24W | 36W | 45W/ 50W | 60W | 70W/72W/75W | 80W/90W/1000W | 110W/120W | 140W/150W | 180W/2000W | 240W/250W |
| 01 | INPUT OPERATING VOLTAGE | 120Vac - 300Vac | 120Vac - 300Vac | 120Vac - 300Vac | 120Vac - 300Vac | 120Vac - 300Vac | 120Vac - 300Vac | 140Vac - 300Vac | 140Vac - 300Vac | 140Vac - 300Vac | 140Vac - 300Vac |
| 02 | RIPPLE CURRENT | < 30% | < 30% | < 30% | < 30% | < 30% / < 10% | < 30% / < 10% | < 30% / < 10% | < 30% / < 10% | < 10% | < 10% |
| 03 | EFFCIENCY | > 86% | > 86% | > 86% | > 86% | > 88% | > 88% | > 90% | > 90% | > 90% | > 90% |
| 04 | OUTPUT VOLTAGE | 21-30Vdc | 31-45Vdc | 48-66Vdc | 70-80Vdc | 80V-100Vdc | 110V-135Vdc | 110V-165Vdc | 140V-205Vdc | 180V-265Vdc | 250V-335Vdc |
| 05 | HOUSING | Plastic | Plastic | Plastic | Plastic | ALUMINUM | ALUMINUM | ALUMINUM | ALUMINUM | ALUMINUM | ALUMINUM |
| 06 | PROTECTED FROM SHORT CIRCUIT & OPEN CURCUIT | Yes | Yes | Yes | Yes | Yes - IP67 | Yes - IP67 | Yes - IP67 | Yes - IP67 | Yes - IP67 | Yes - IP67 |
| 07 | DIMENSION | 92mm X 32mm X 25mm | 104mm X 38mm X 29mm | 122mm X 38mm X 29mm | 122mm X 38mm X 29mm | 155mm X 44mm X 33mm | 155mm X 44mm X 33mm | 165mm X 53mm X 32mm | 185mm X 60mm X 38mm | 220mm X 68mm X 37mm | 230mm X 68mm X 38mm |
(With 3 Year Warranty)
Available in 12W, 24W & 60W
(With 3/5 Year Warranty)
Available in 5V, 12V and 24V with EMI-EMC compliance options.
