Standard

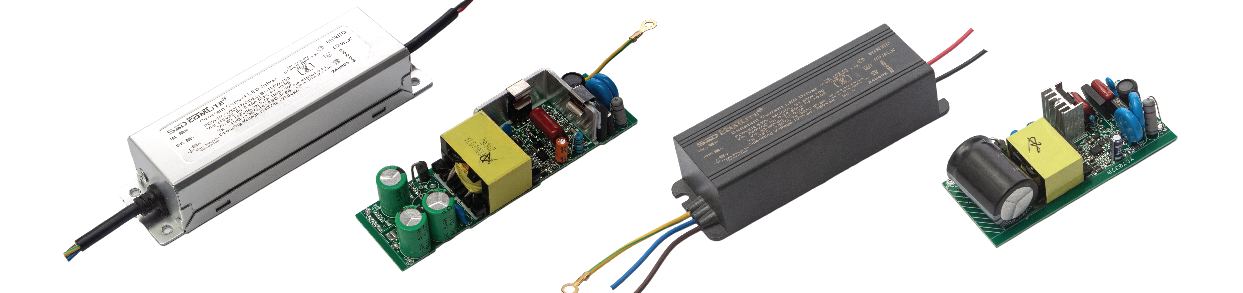

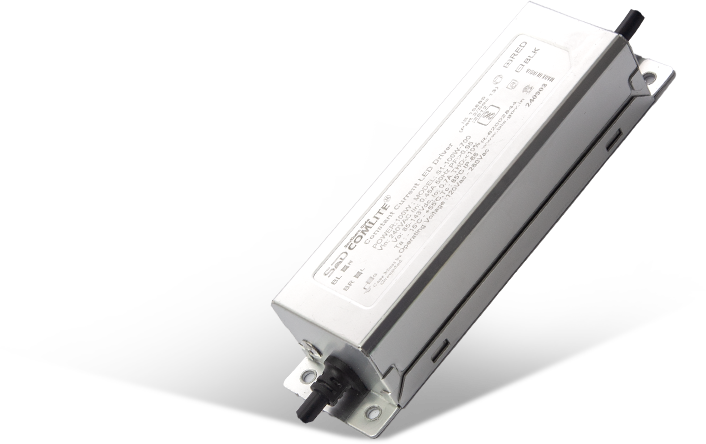

Constant Current Drivers - Standard

With 3 Year Warranty

Product Features

Input Voltage

240Vac

Input Operating Voltage

120Vac - 300Vac

Output Current

700mA

SPD Compatibility

20KV

THD

< 10%

Ripple Current

< 30%

Input Power Factor

> 0.95

Efficiency

> 85%

Output Current Regulation

±5%

Operating Test Range

140V - 280V

Operating Temperature Range

-10*C to 70*C

Certification

CRS (IS 15885, PART 2/SEC 13): 2012

Potted Driver

Yes

IP

65 / 66 / 67

Protection

CLASS

1

440V Test

Single

Phase

10 Hrs

415V Test

Double

Phase

8 Hrs

Low Voltage Protection

Cut off < 110V | Restart > 115V

Over Voltage Protection

Cut off > 320Vac & Recovery < 300Vac

Protected

from Short Circuit and Open Circuit

Thermal Protection

Thermal fold back at Tc 85*C

Isolation (Input - Output)

1.75KV

Isolation (Input - Earth)

1.5KV

Surge Protection

6KV

DATA SHEET CONSTANT CURRENT
DRIVER		 PRODUCT CATEGORY: Standard
Warrenty: 3 Years from the Date of Invoice
Sr.No DRIVER WATTAGE 24W 36W 45W /50W 60W 75W /72W /70W 100W/90W/80W
01 OUTPUT VOLTAGE 21-30Vdc 31-45Vdc 48-66Vdc 70-80Vdc 80V-100Vdc 110V-135Vdc
02 HOUSING Plastic Plastic Plastic Plastic Aluminum Aluminum
03 DIMENSION 92mm X 32mm X 25mm 104mm X 38mm X 29mm 122mm X 38mm X 29mm 122mm X 38mm X 29mm 155mm X 44mm X 33mm 155mm X 44mm X 33mm
