IP67

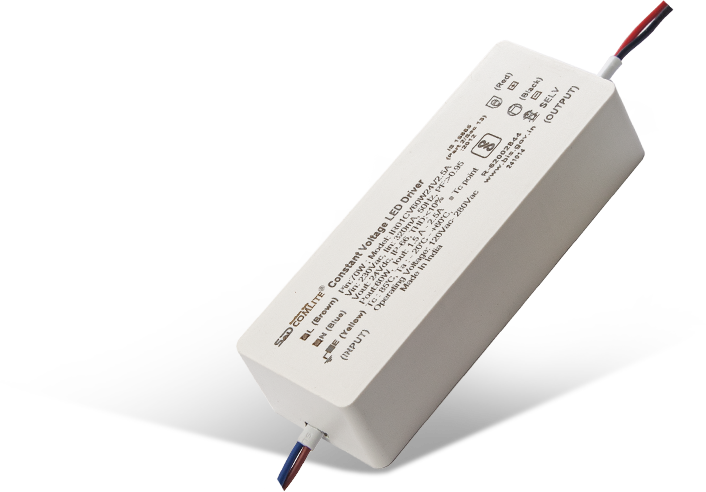

Constant Voltage Driver - IP67

With 3/5 Year Warranty

Product Features

Available

with EMI-EMC compliance

Ripple Current

< 5%

THD

< 10%

P.F

> 0.95

Protection

440V Test

10 Hrs

Protected

from Low Voltage Cut Off / High Voltage Cut Off

Over Voltage

Protection

Low Voltage

Protection

Over Current

Protection

Short Circuit

Protection

Over Temperature

Protection

DATA SHEET CONSTANT VOLTAGE
DRIVER		 PRODUCT CATEGORY: IP67
Warrenty: 3/5 Years from the Date of Invoice
12V
Sr.No OUTPUT WATTAGE 12W 24W 36W 48W 60W 72W 100W 120W 250W 350W
01 OUTPUT VOLTAGE 12V 12V 12V 12V 12V 12V 12V 12V 12V 12V
02 OUTPUT CURRENT 1A 2A 3A 4A 5A 6A 8.3A 10A 20.8A 29.2A
03 SURGE 6KV / 4KV 6KV / 4KV 6KV / 4KV 6KV / 4KV 6KV / 4KV 6KV / 4KV 6KV / 4KV 6KV / 4KV 6KV / 4KV 6KV / 4KV
24V
Sr.No OUTPUT WATTAGE 24W 36W 48W 60W 70W 120W 150W 200W 250W
01 OUTPUT VOLTAGE 24V 24V 24V 24V 24V 24V 24V 24V 24V
02 OUTPUT CURRENT 1A 1.5A 2A 2.5A 3A 5A 6.25A 8.33A 10.42A
03 SURGE 6KV / 4KV 6KV / 4KV 6KV / 4KV 6KV / 4KV 6KV / 4KV 6KV / 4KV 6KV / 4KV 6KV / 4KV 6KV / 4KV
5V
Sr.No OUTPUT WATTAGE 60W 100W 200W
01 OUTPUT VOLTAGE 5V 5V 5V
02 OUTPUT CURRENT 12A 20A 40A
03 SURGE 6KV 6KV 6KV

Constant Current Drivers

Constant Voltage Drivers - PREMIUM

(With 5 Year Warranty)
Ranging from 24W to 250W

Know More Enquire Now
Constant Voltage Drivers - STANDARD

(With 3 Year Warranty)
Ranging from 24W to 100W

Know More Enquire Now
Constant Voltage Drivers - ECO

(With 2 Year Warranty)
Ranging from 24W to 100W

Know More Enquire Now
